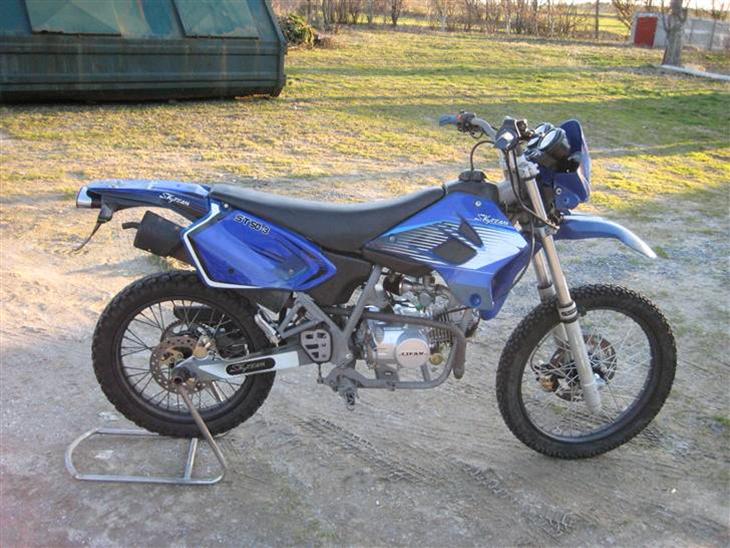

Skyteam ST50-3TR SOLGT 2007
742 visninger
|
Oprettet:
Skyteam ST50-3TR SOLGT
Årgang:
2007
Motor:
Std:
TYPE OF ENGINE 49cc, 4-STROKE, SING cylinder, 2valve
BORE AND STROKE (mm) 39 × 41.4mm
COMPRESSION RATIO 8.8 TO 1
COOLING AIR
IGNITION CDI
TRANSMISSION 4 SPEED WITH MANUAL CLUTCH/
AUTOMATIC CLUTCH
FINAL DRIVE CHAIN
STARTING SYSTEM ELECTRIC / KICK
Lifan 125 ccm:
Single cylinder, 4-stroke, 2 valves, OHC racing head, air cooled, 125cc
Bore x Stroke: 52,4mm x 55mm, this is a ’square’ engine for best balance between power and torque
Ventil størrelse: 27mm intake, 23mm exhaust
Cylinder voloumen: 123.7cc
Kompressionsforhold: 9.47:1
Karburator: 26mm, MIKUNI, racing
Ignition: CDI, 12 volt, permanent magnetic stator
Gears: 4-speed, manual clutch, 1-N-2-3-4, 1 down 3 up.
Gear Ratios: 1st 2.833:1, 2nd 1.706:1, 3rd 1.238:1, 4th 0.958:1
Final Drive: 15 teeth #428 front sprocket included
Lubrication: 1.1 litres, 5W/40 4-stroke motorcycle oil, pressure and splash
Fuel: Unleaded
Alle ovenstående oplysninger er fabriksdata, motorens ydelse er opgivet på
krumtappen
TYPE OF ENGINE 49cc, 4-STROKE, SING cylinder, 2valve
BORE AND STROKE (mm) 39 × 41.4mm
COMPRESSION RATIO 8.8 TO 1
COOLING AIR
IGNITION CDI
TRANSMISSION 4 SPEED WITH MANUAL CLUTCH/
AUTOMATIC CLUTCH
FINAL DRIVE CHAIN
STARTING SYSTEM ELECTRIC / KICK
Lifan 125 ccm:
Single cylinder, 4-stroke, 2 valves, OHC racing head, air cooled, 125cc
Bore x Stroke: 52,4mm x 55mm, this is a ’square’ engine for best balance between power and torque
Ventil størrelse: 27mm intake, 23mm exhaust
Cylinder voloumen: 123.7cc
Kompressionsforhold: 9.47:1
Karburator: 26mm, MIKUNI, racing
Ignition: CDI, 12 volt, permanent magnetic stator
Gears: 4-speed, manual clutch, 1-N-2-3-4, 1 down 3 up.
Gear Ratios: 1st 2.833:1, 2nd 1.706:1, 3rd 1.238:1, 4th 0.958:1
Final Drive: 15 teeth #428 front sprocket included
Lubrication: 1.1 litres, 5W/40 4-stroke motorcycle oil, pressure and splash
Fuel: Unleaded
Alle ovenstående oplysninger er fabriksdata, motorens ydelse er opgivet på
krumtappen
Hestekræfter
Std: ??
Lifan 125 ccm:
Maximum Power: 8.5 Kw DIN @ 9,500 rpm = 12 HK med 26mm Karburator.
Rated Power: 6.5 Kw @ 7,500 rpm
Torque: at least 8.8 Nm @ 5,500 rpm
Lifan 125 ccm:
Maximum Power: 8.5 Kw DIN @ 9,500 rpm = 12 HK med 26mm Karburator.
Rated Power: 6.5 Kw @ 7,500 rpm
Torque: at least 8.8 Nm @ 5,500 rpm
Fælge
WHEEL/FRONT 3.0-21
WHEEL/REAR 4.1-18
WHEEL/REAR 4.1-18
Dæk
TIRE/FRONT 3.0-21
TIRE/REAR 4.1-18
TIRE/REAR 4.1-18
Styling
Bestiller ny baglygte og blinklys fra KGI når det kommer på lager.
Ekstra tilbehør
140 ccm YX cross motor har brug for ny krumtap plus svinghjul.
Bemærkninger
L × W × H 84.6**32.7**48.4*
2150×830×1230mm
SEAT HEIGHT 780/30.7"
WHEELBASE 1460mm
FUEL CAPACITY 10L/2.64 GALLON
LUBRICATION OILTANK CAPACITY 800ml
DRY WEIGHT 113KG/249LBS
SUSPENSION/FRONT TELESCOPIC FORK
SUSPENSION/REAR DUBBLE SHOCK
BRAKE/FRONT DISC Ф 220mm/6.5"
BRAKE/REAR DISC
2150×830×1230mm
SEAT HEIGHT 780/30.7"
WHEELBASE 1460mm
FUEL CAPACITY 10L/2.64 GALLON
LUBRICATION OILTANK CAPACITY 800ml
DRY WEIGHT 113KG/249LBS
SUSPENSION/FRONT TELESCOPIC FORK
SUSPENSION/REAR DUBBLE SHOCK
BRAKE/FRONT DISC Ф 220mm/6.5"
BRAKE/REAR DISC
Skyteam ST50-3TR SOLGT
nov 2007
Følger: 20 Følgere: 19 Scootere: 3 Emner: 36 Svar: 159
ja så lige du har en tilsalg, hvad tager du for den ca. har også tænkt på at sælge min måske
nov 2007
Følger: 20 Følgere: 19 Scootere: 3 Emner: 36 Svar: 159
der står std foran TYPE OF ENGINE 49cc.
og ved lifan 125 er der en anden beskrivelse. det er fordi jeg har to motorer til den.
