250cc cylinder på 180cc piaggioi blok

8.949 visninger | Oprettet: 14. feb 2011

I have ventured on a great project for the Sprint saisong 2008th
In cooperation with a Belgian racing-team (Mykitech) we have made here in Germany, in the coming Saisong to set new standards in all classes.


The project is still in its infancy, so I can not give any details.
the 250cc Sprinter will be the first, followed by the 80's and then we will have two of our 70er.Voraussichtlich Sprinter ready to CS.


The Challenge:

Sprinter in the 70 cc, 80 cc and open class to build the new records
. Reach

The premise:

The-art Machine-Tesch Nick and the necessary know-how.


Our projects:

All Sprinters are based on the same basic principle: light, powerful and evil

The Setting:

The frames are made of light metal for now, later when the
Konsturktion is common in carbon.

The Sprint engines:



- 250 cc engine

The cylinder is also one Husqvana 250.Motorblock and
Crankshaft were even hergestellt.Auspuffanlage be drawn up,
and the spark, a jump can PVL digital.
The gear housing as well as the variable is
from the house piaggio.Der Malossi variator comes from.
Keihin provides ventilation.
As coupling is a newly developed manual dry clutch.

- 80 cc engine

The base of the 80 cc engine is a Minarelli engine.
The special feature of this engine is the 80 cc cylinder
will be ventilated with a rotary valve intake system.

- 70cc motor

The 70 cc engine is one of capacity, down version of the
80 cc engine.



Our process:

Turning
Milling
Loops
Hardnesses
Presses
Rays
Welding
and much more.

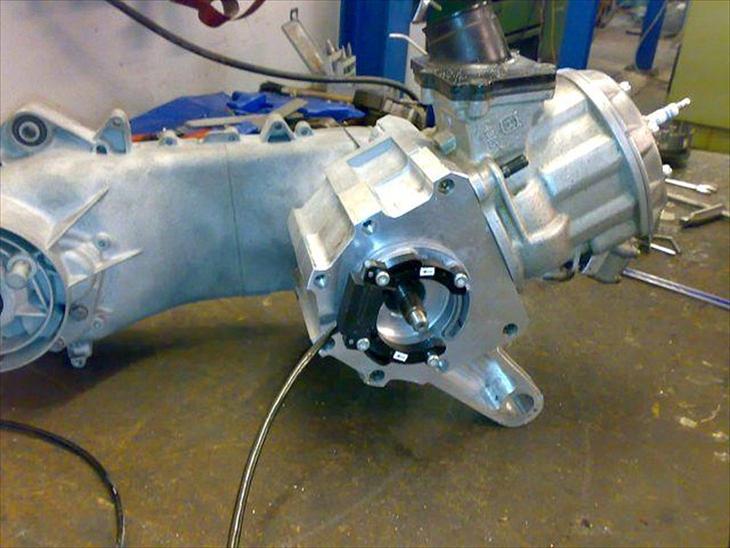

Now the first pictures from the construction of the 250 cmm sprinter:
